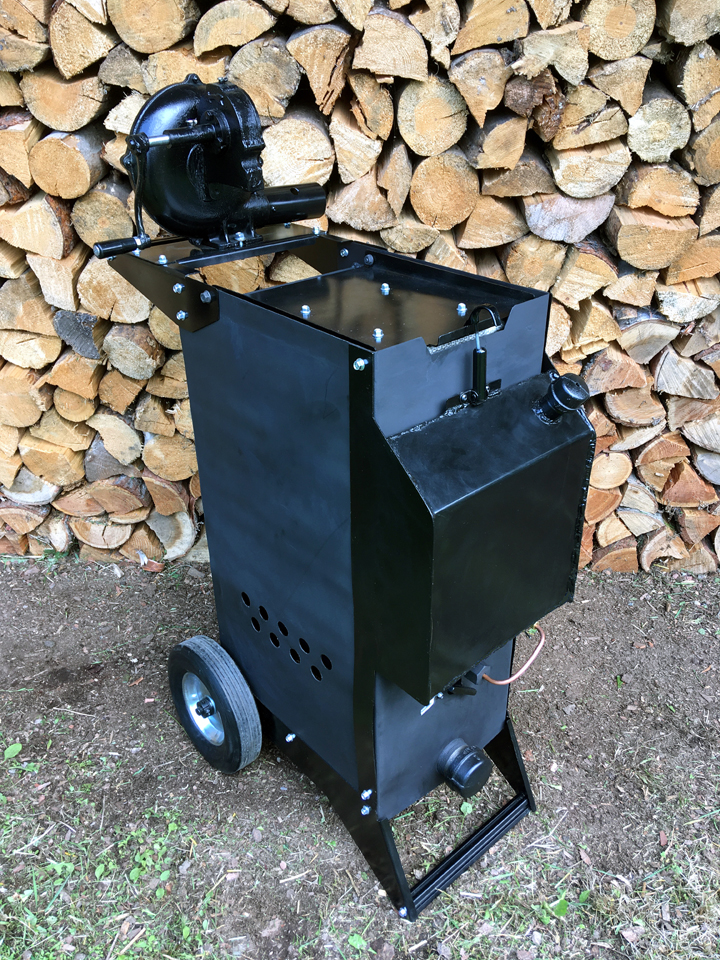

FREEDOM GASIFIER
The Freedom Gasifier is a mobile off-grid synthesis gas (syngas, producer gas, wood gas) production system capable of supporting a variety of gasoline-carbureted (4-stroke) small engines, such as portable power generators, wood splitters, chippers, mills, etc. This ready-to-go gasifier system provides highly efficient performance and true off-grid capability. The Freedom Gasifier uses homemade charcoal (simple to make with a steel burn barrel and small pieces of wood, as shown in this video) as its fuel source, resulting in more efficient syngas production. The use of fuel-grade charcoal also provides a cleaner burning syngas that contains far less tar and other contaminants than raw-wood burning gasifiers, reducing engine wear and requiring less gas filtration.

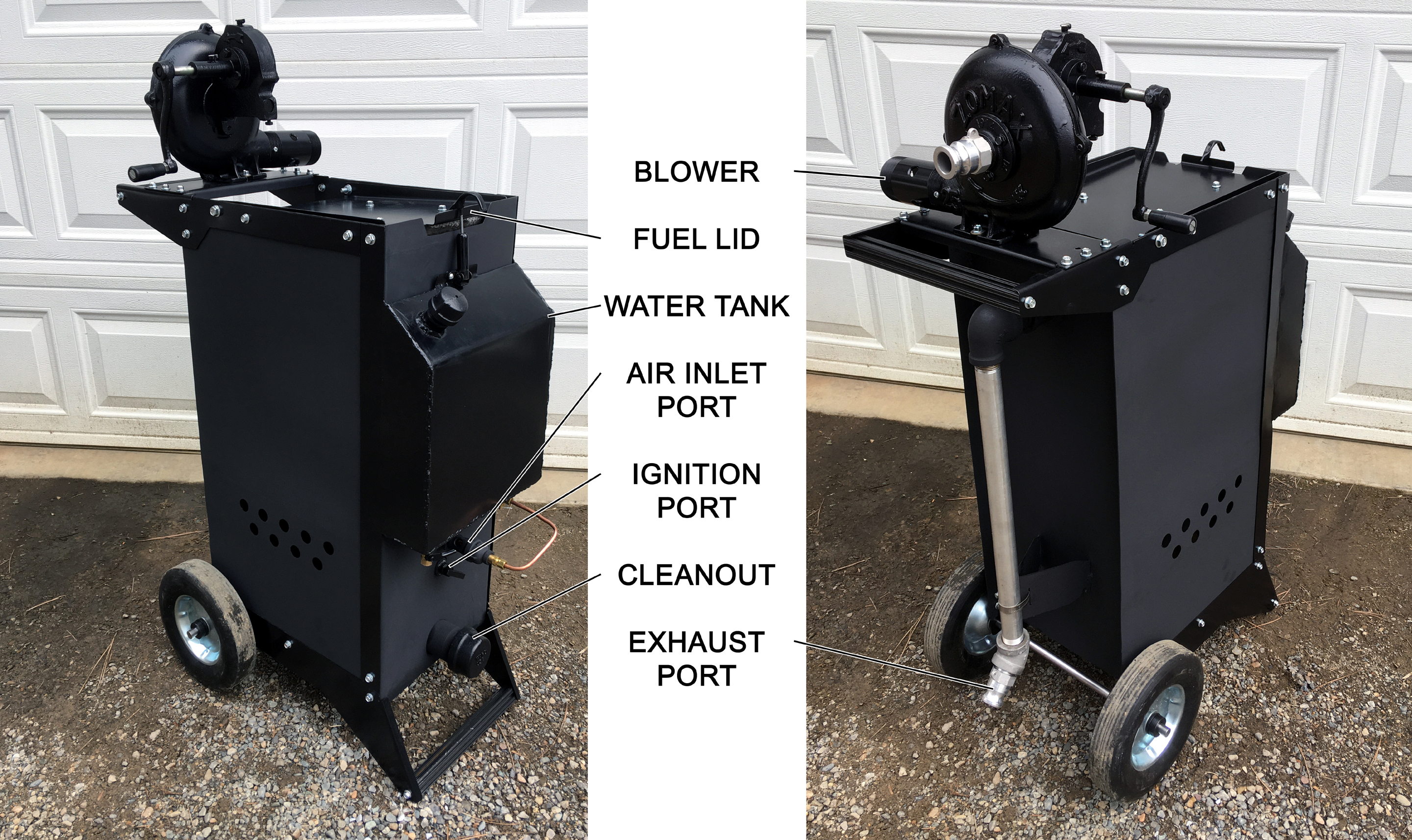

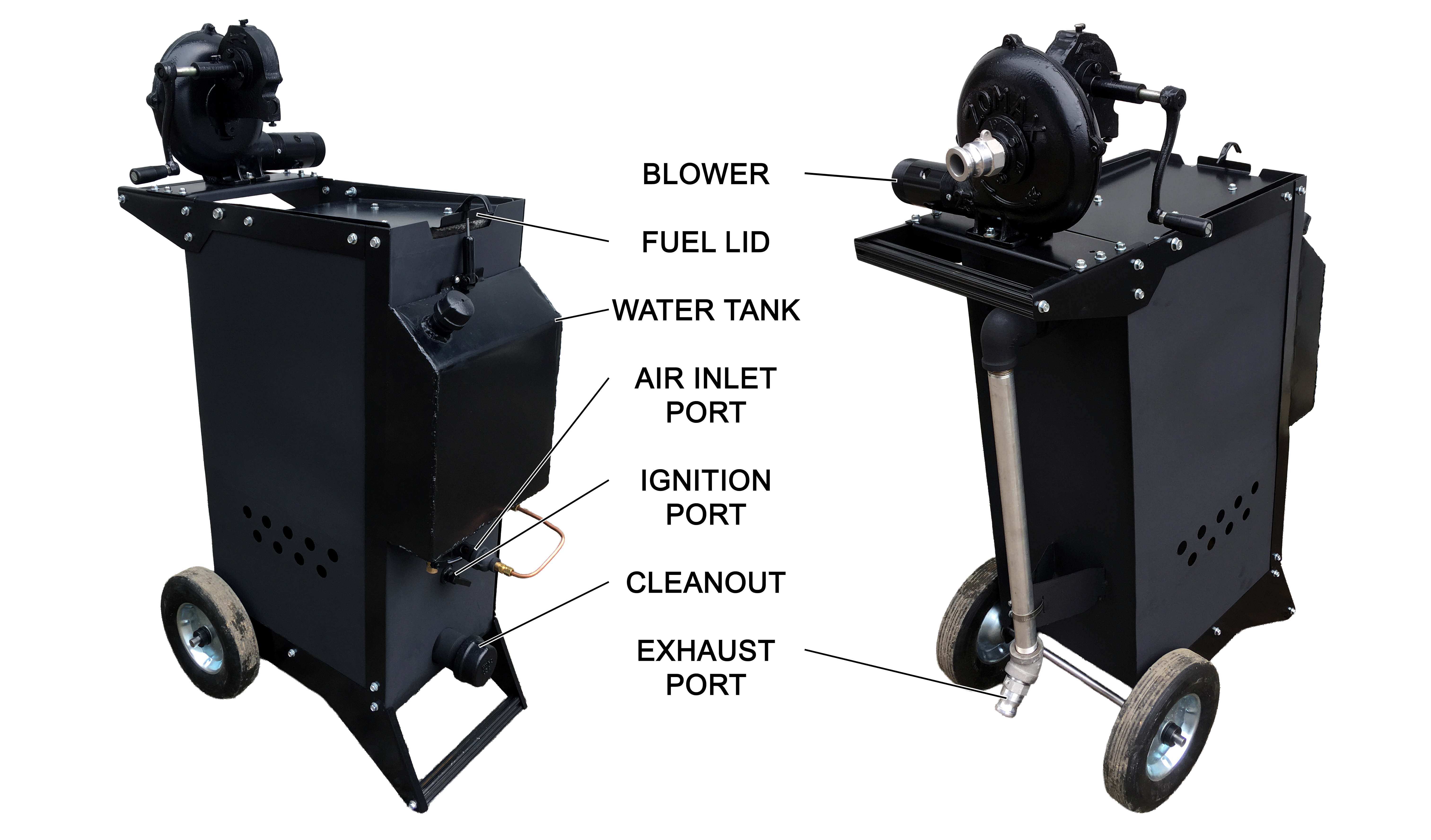

Features include an onboard hand-crank blower (no electrical power required for startup), water-drip fuel BTU enhancement system, stainless-steel air injection pipe, aluminum exhaust-gas cooling system, quick-connect hoses, 3-stage reusable filter system, air-fuel mixing valve, combustion air filtration, and carburetor adapter, along with built-in safety features.
NOTE: The Freedom Gasifier can NOT be used with dual-fuel and tri-fuel engines/generators, as the carburetors of these multi-fuel engines/generators have restrictions that do not allow enough syngas through the carburetor to properly run the engine.

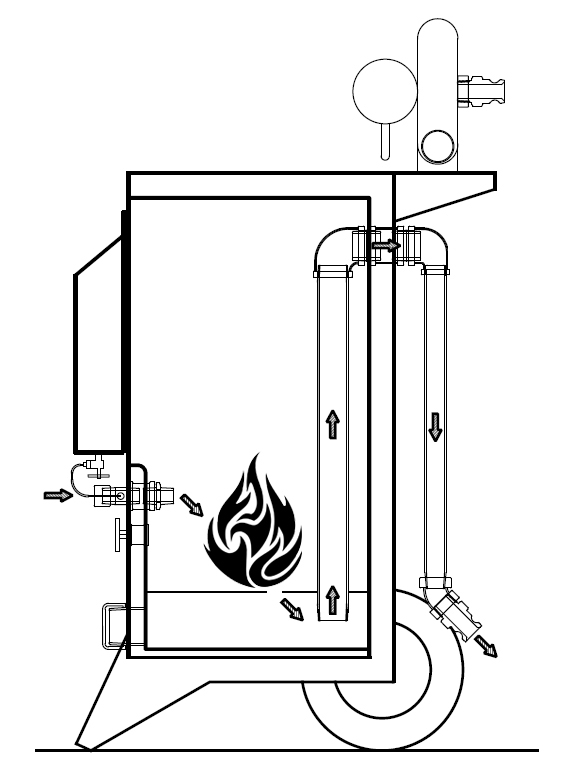

How It Works: The Freedom Gasifier burns homemade charcoal in a highly controlled environment where the charcoal fire has just enough air to burn a small, but intense fire, without allowing enough air to burn the gasses produced in the system. These gasses are then cooled and filtered, before being delivered to the engine’s carburetor where they are used as a replacement for gasoline. If you have ready access to wood, you can easily make the homemade charcoal to power the Freedom Gasifier fuel production system to start your energy independence. For more information about the principles of gasification and the background behind the development of the Freedom Gasifier, visit our gasifier blog page.
Specifications:
- Overall Dimensions: 18” Wide x 45” High x 29” Deep
- Weight: 110 Pounds
- Construction: 14-Gauge/16-Gauge Steel Body Components
- Fuel Capacity: 15 Gallons
- Fuel Type: Homemade Charcoal (NOT Compatible with Raw Wood)
- Fuel BTU Enhancement: Water Drip System
- Engine Compatibility: 200cc to 450cc (6hp to 15hp) Gasoline Carbureted (4-Stroke) Small Engines and Portable Power Generators (Single Cylinder Type Honda and Honda Clones, NOT Dual-Fuel or Tri-Fuel)
- Run Time: 45-Minutes to 3-Hours (Dependent on Engine Size and Load)
- Power Output: 4kWh to 5kWh (Dependent on Fuel Quality, Water Drip Rate & Air-Fuel Ratio), Approximately 60% of Gasoline's BTUs of Energy
- Onboard Blower: Hand Crank (No Electrical Power Required for Startup)
- Inlet Air Injection Tube: 304 Stainless Steel (Resists Corrosion from Combustion Heat)
- Safety Features: Over-Pressure Relief System & Fire/Gas Deflection Flanges
- Gas Cooling System: Aluminum Exhaust Components (5x Greater Heat Dissipation than Steel)
- Gas Filter System: 3-Stage Reusable Filters (Coarse, Medium & Fine Particulate)
- Hoses: Heat & Flame-Resistant Hoses with Quick-Connect Fittings
- Air-Fuel Mixing Valve: Integrated with Filter Box, Includes Filter for Combustion Air
- Engine Adapter: Quick Connect Kit Compatible with Direct Carburetor Connection or Installation on Carburetor Air Filter Housing Cover (Metal or Plastic Housings)
- Mobility Kit: Flat-Free Tires, High Strength Handle & High Ground Clearance Exhaust Port
Freedom Gasifier Price: $4,200 (price subject to change due to material cost fluctuations).
If you would like to purchase the Freedom Gasifier, click here and send a request.
